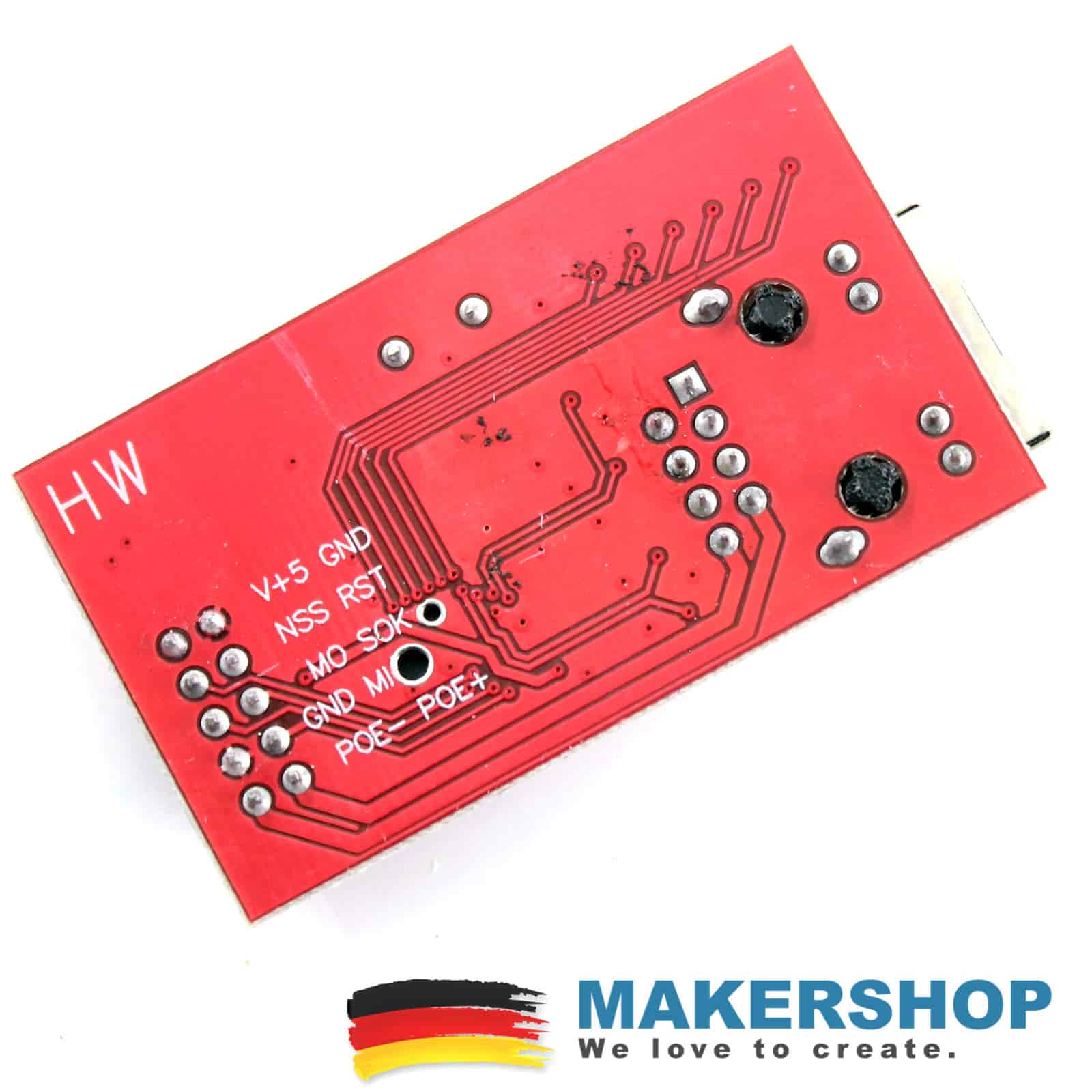

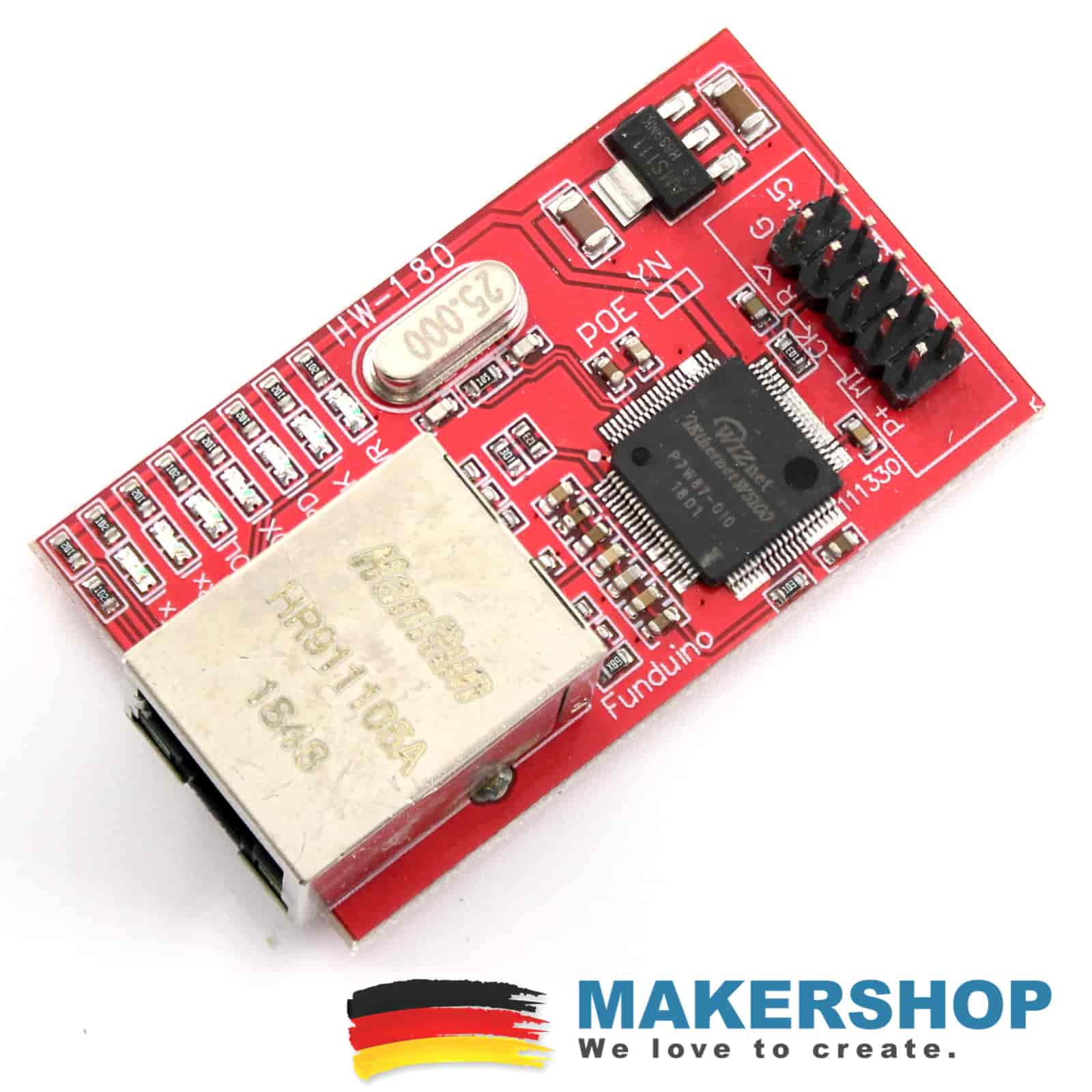

Mini W5100 LAN Ethernet Modul Netzwerk

Kompaktes W5100 LAN Ethernet Modul

Technische Daten:

• Multiple interfaces to choose from: direct bus, indirect bus and SPI bus;
• Supports hardware TCP / IP protocol stack, supporting TCP, UDP, ICMP, IGMP, IPv4, ARP, PPPoE.
Up to 4 independent ports
• Internal integrated 16KBYTE send and receive cache;
• A variety of information output instructions, including RX, TX, Full / Duplex, Colision, Link, Speed;
• Supports automatic polarity conversion (DMI / MDIX);
• 3.3V power supply, IO signal compatible with 5V voltage;
• Comes with network port, double row 2 * 14 2.0mm pin;
