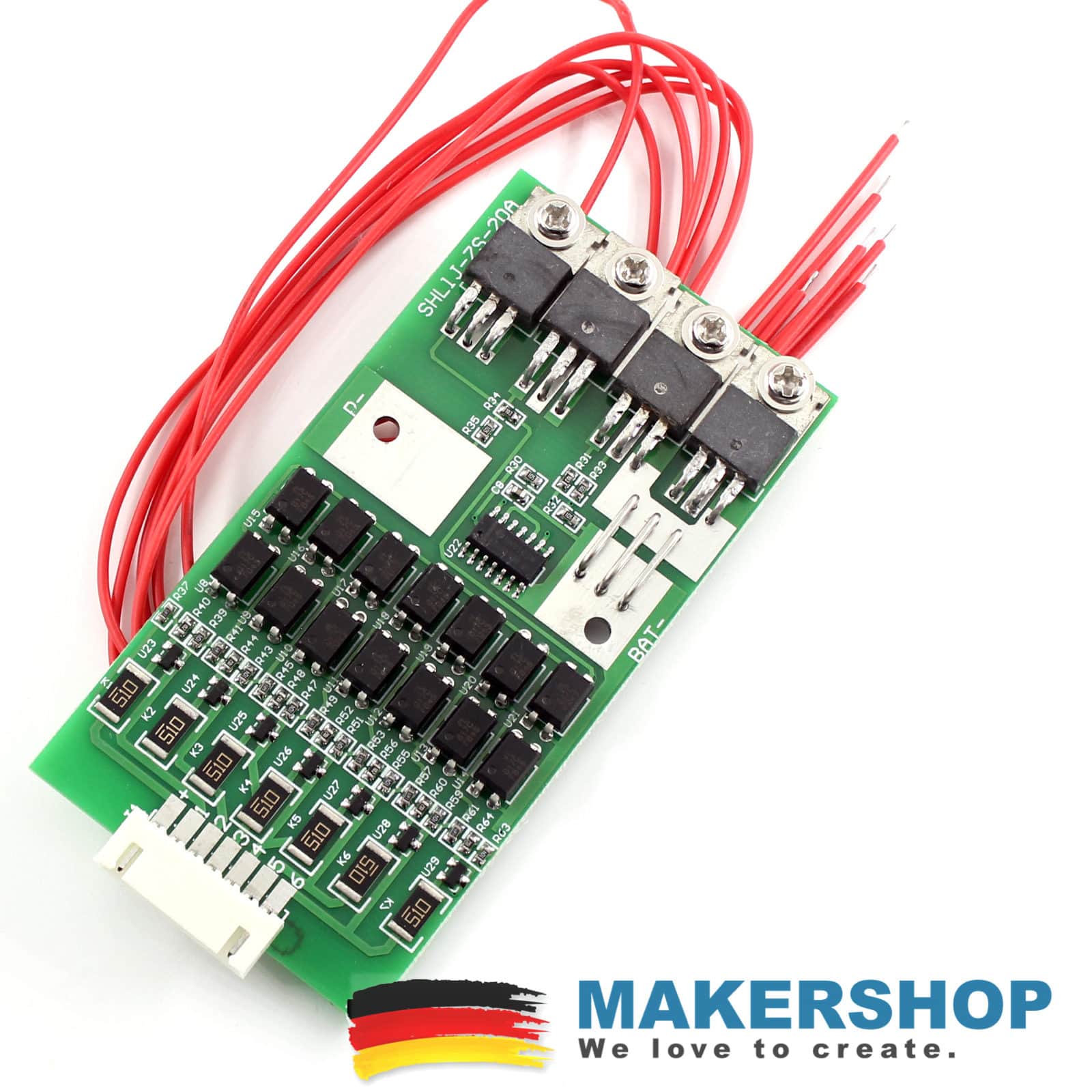

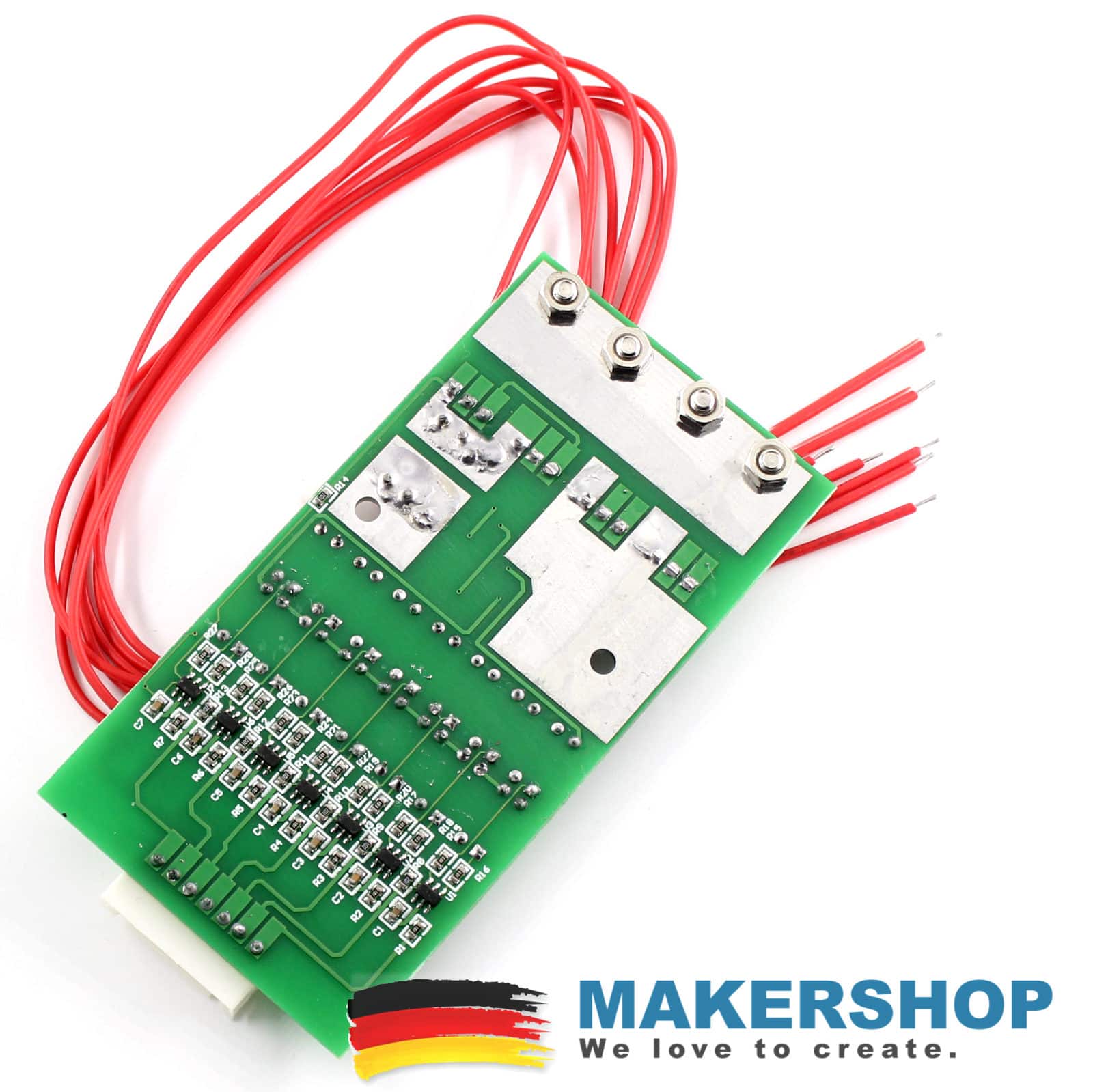

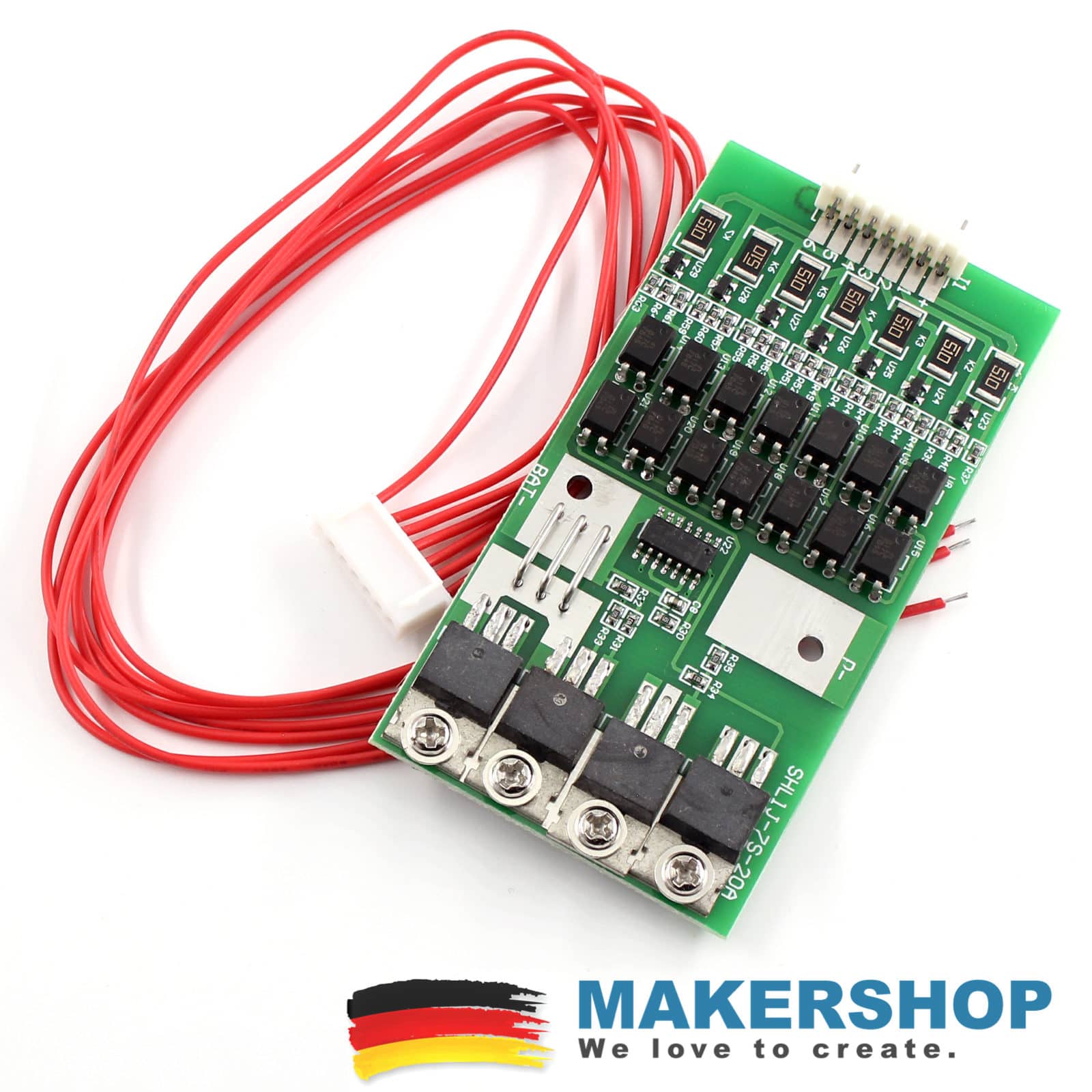

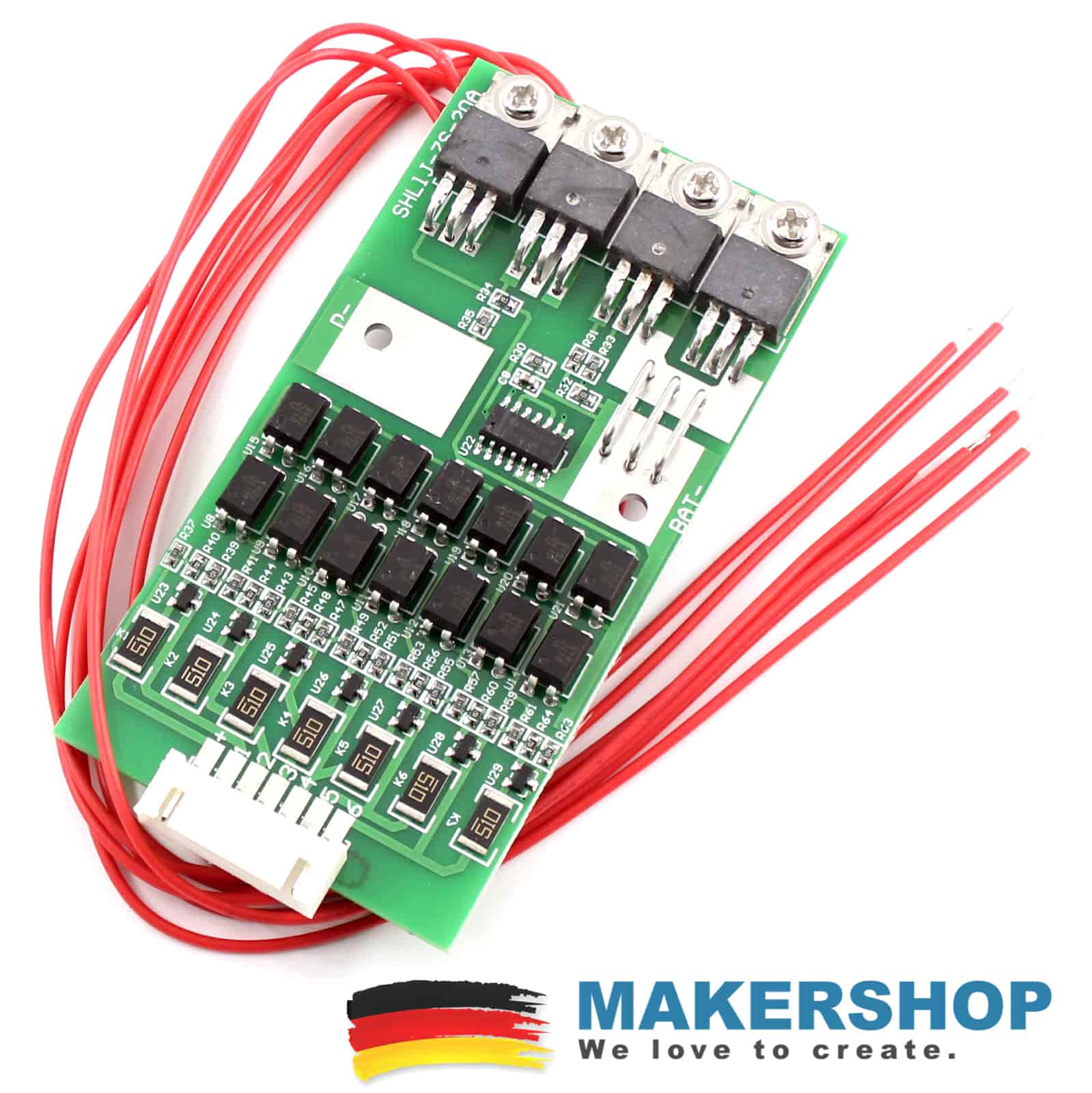

7S 24V 20A Li-ion Lithium 18650 Batterie

Abmessungen: 90mm × 47mm × 10mm / 3.54 × 1.85 × 0.39″
Technische Daten:

• Equilibrium current: 80 mA（VCELL=4.20V）
• Supported battery type: 7 cells 4.2V Lithium ion battery
• Balancing the locus of control: 4.18±0.03 V
• Overcharge threshold: 4.3±0.05 V
• Overcharge time delay: 75mS
• Overcharge release: 4.1±0.05 V
• Discharge threshold: 2.4±0.08 V
• Discharge delay: 5mS
• Working current: 20 A
• Over current threshold: 30 A
• Static power: ＜500uA
• Overcharge protection function:Yes
• Discharge protection function:Yes
• Over current protection function:Yes
• Balanced protection function:Yes
• Over-current release: Disconnect the load release
• Short circuit protection function: Yes（Disconnect the load can be recovery.）

Dokumentation / Ressourcen

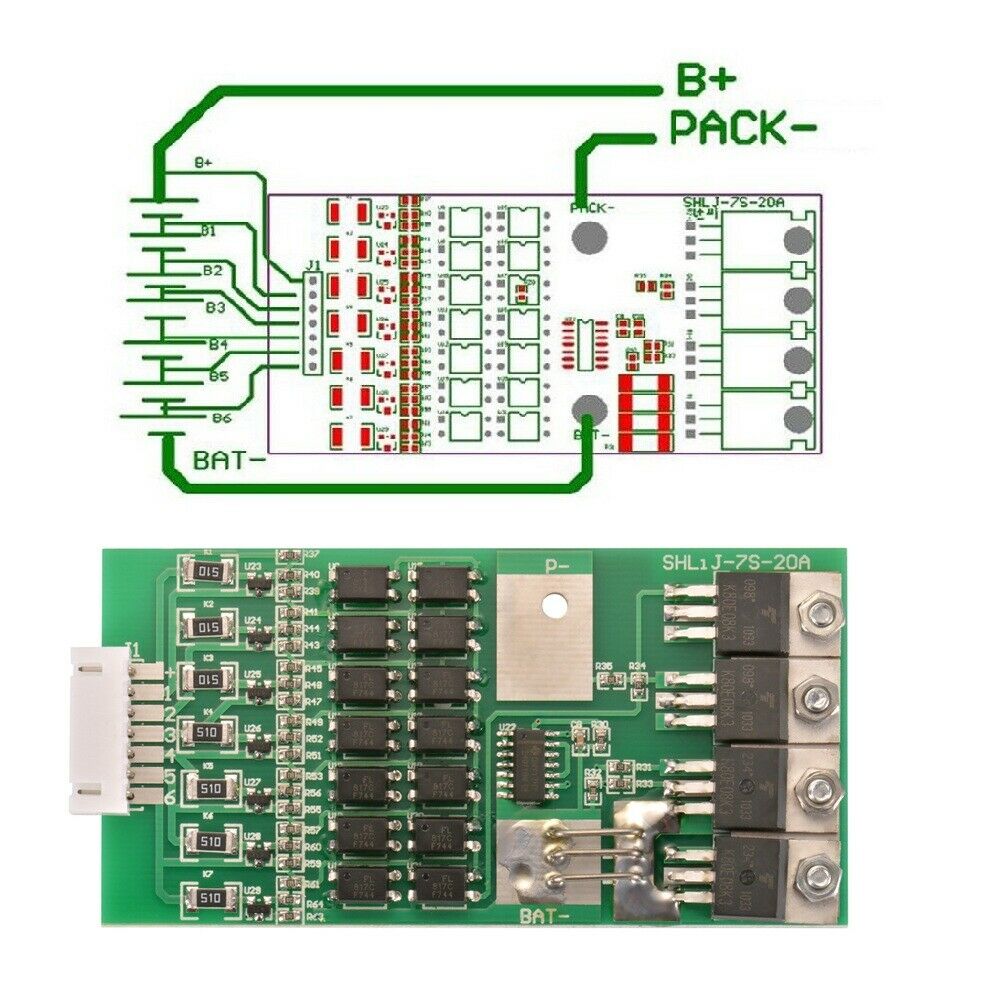

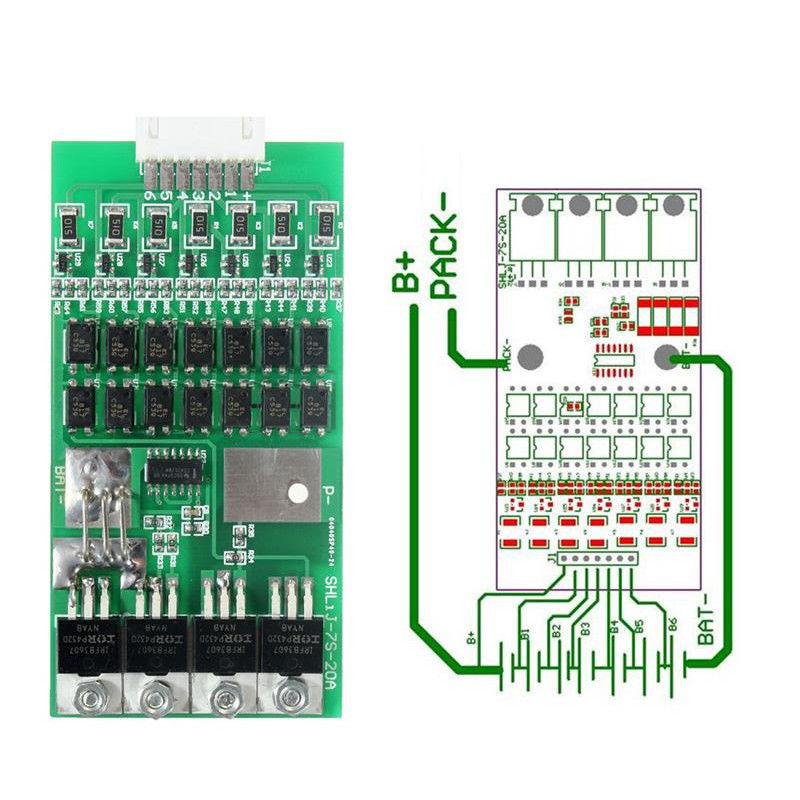

• BMS 7S Anschlussplan
