Overview
This is a universal driver board for e-Paper raw panels, thanks to the dual wireless features – WiFi & Bluetooth – it is easy to display images from PC / smart phone via WiFi or Bluetooth.
Furthermore, it can also be used for Arduino development, just like any other normal Arduino board.
Features
Onboard ESP32, supports Arduino development
Provides Arduino APP, allows to refresh display content via Bluetooth EDR
Provides HTML host code, allows to refresh display content via remote webpage, suit for Internet applications
Supports Floyd-Steinberg dithering algorithm, more color combinations, better shadow rendering for the original image
Supports popular image formats: BMP, JPEG, GIF, PNG, etc.
Easy to be integrated into wireless applications
Comes with e-Paper driver (open source)
Comes with development resources and manual
Specifications
WiFi protocol: 802.11b/g/n
Bluetooth protocol: 4.2, includes traditional BR/EDR, and low power BLE
Interface: 3-wire SPI, 4-wire SPI (default)
Operating voltage: 5V
Operating current: 50mA ~ 150mA
Outline dimension: 29.46mm x 48.25mm
Development Resources
Wiki : www.waveshare.com/wiki/e-Paper_ESP32_Driver_Board?Amazon
PACKAGE CONTENT

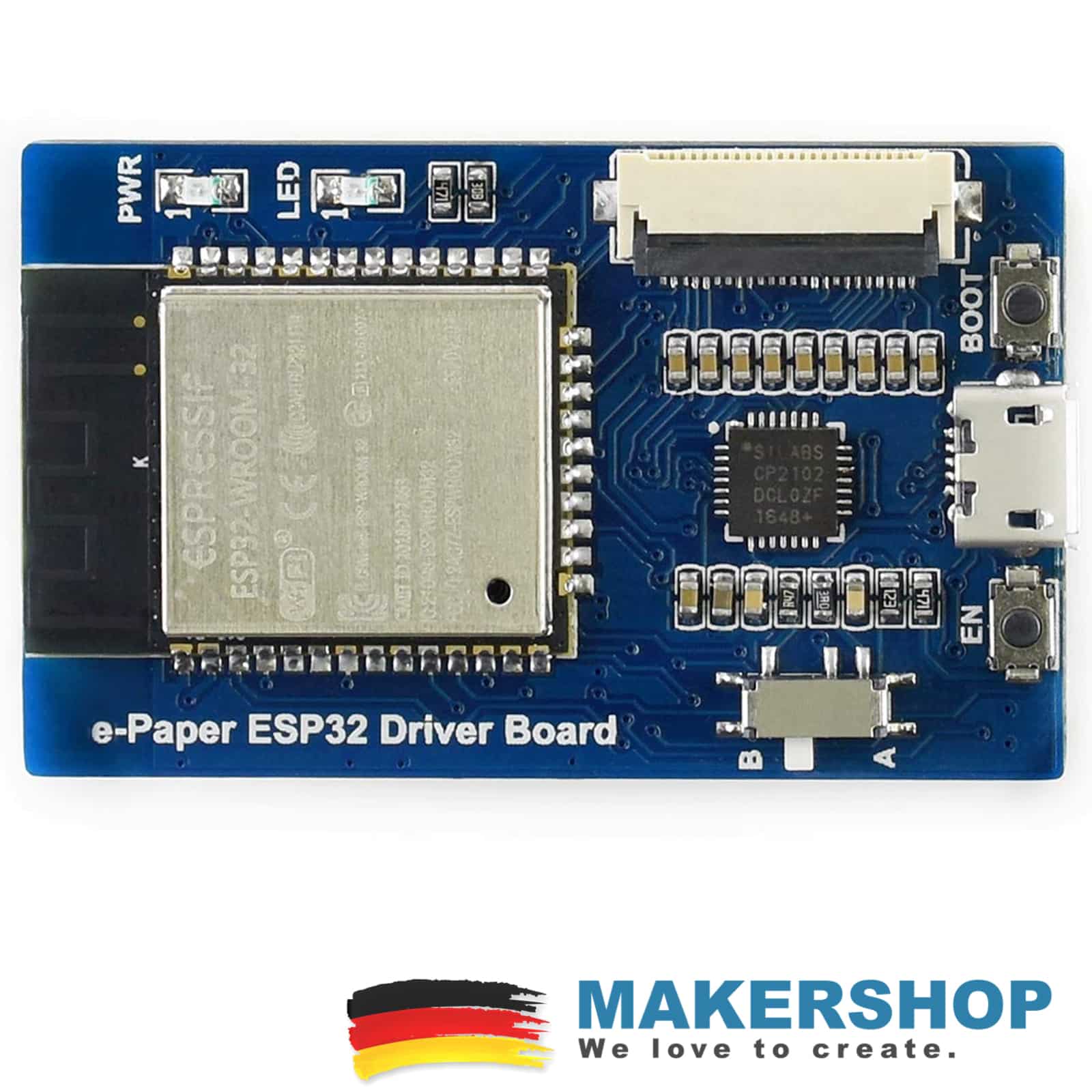

- e-Paper ESP32 Driver Board x1

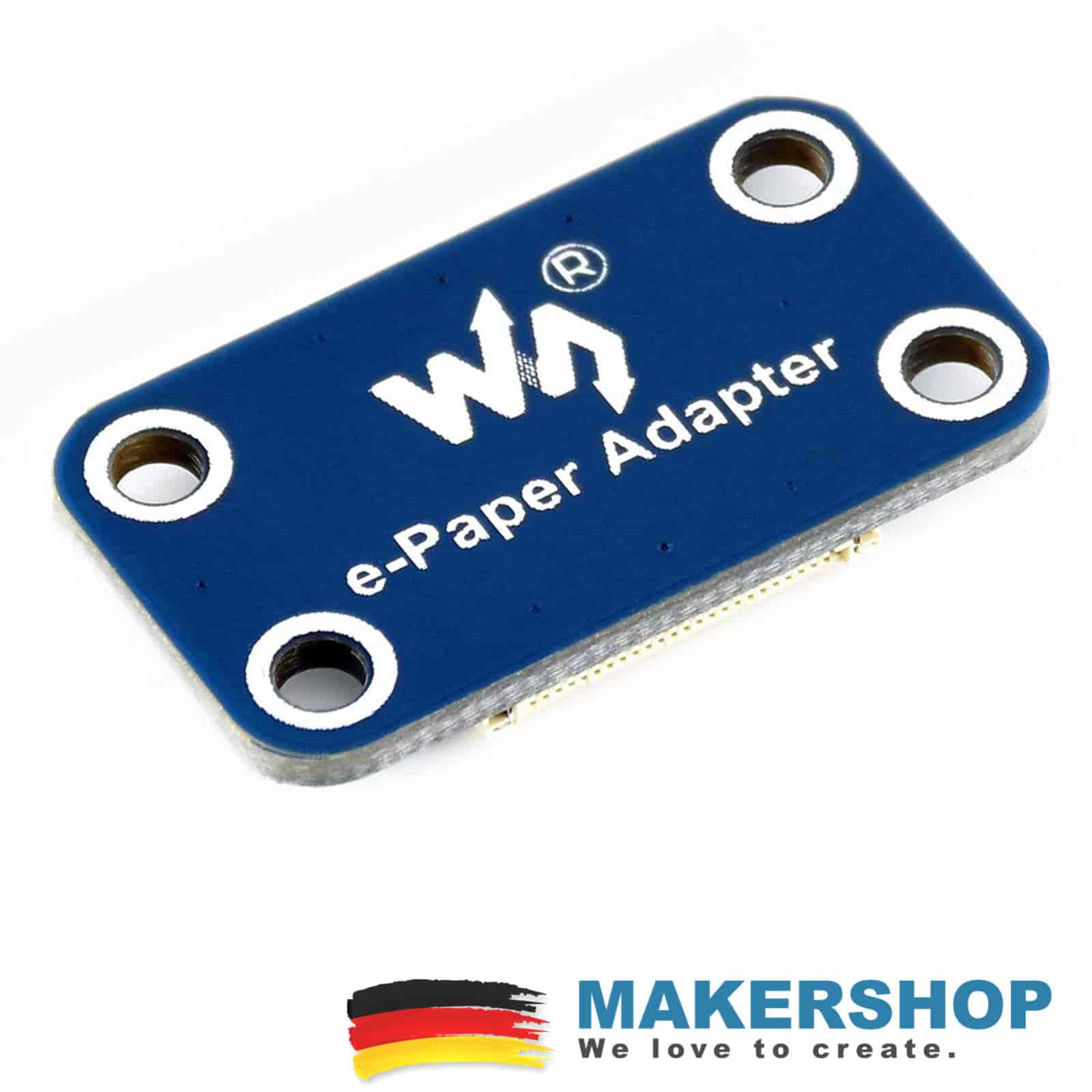

- e-Paper Adapter x1
- 24PIN FFC x1
